56mm Brushless DC Gear Motor
56mm Brushless DC Gear Motor
56mm Brushless DC Gear Motor
56mm Brushless DC Gear Motor
56mm Brushless DC Gear Motor
56mm Brushless DC Gear Motor
56mm Brushless DC Gear Motor
56mm Brushless DC Gear Motor
56mm Brushless DC Gear Motor

56mm Brushless DC Gear Motor

Contact Us Now

Description

Reviews

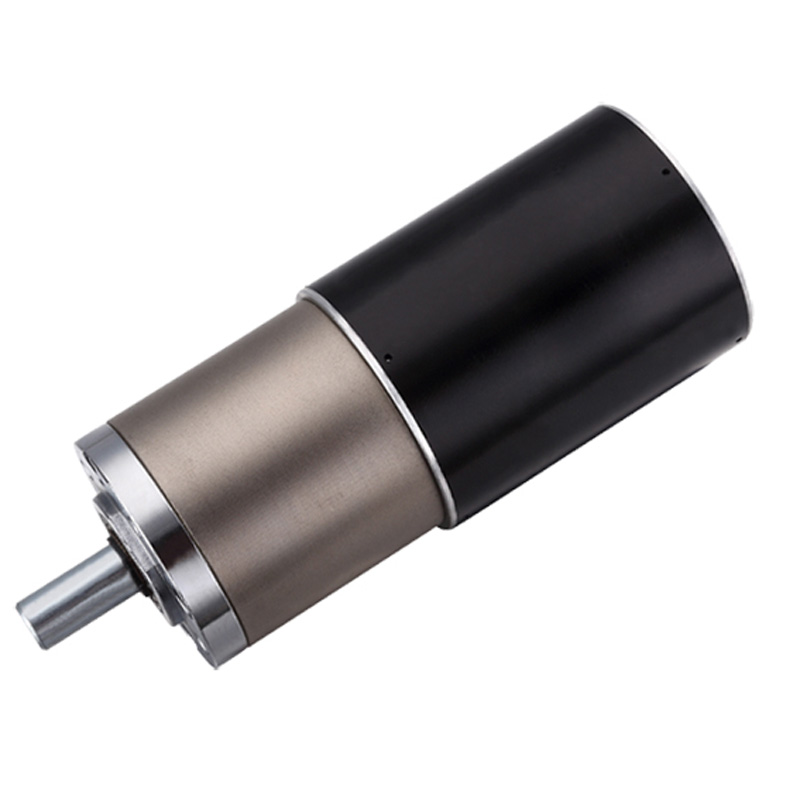

PG56BL60 series  Gearmotors consist of 56mm planetary gearboxes and 60mm BLDC motors

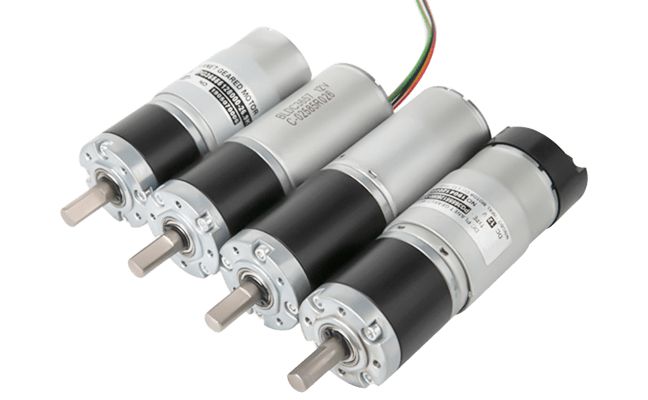

The planetary gear motors are equipped with a hall sensor type brushless DC motor to increase the torque and lower the output speed to meet your application or project demands.Twirl offers rushless DC Gearmotors with hall only feedback or with a control board that is fully integrated to the internal motor.When mated to our planetary gearbox, this brushless gearmotor offers extremely long life and high torque in a compact size.

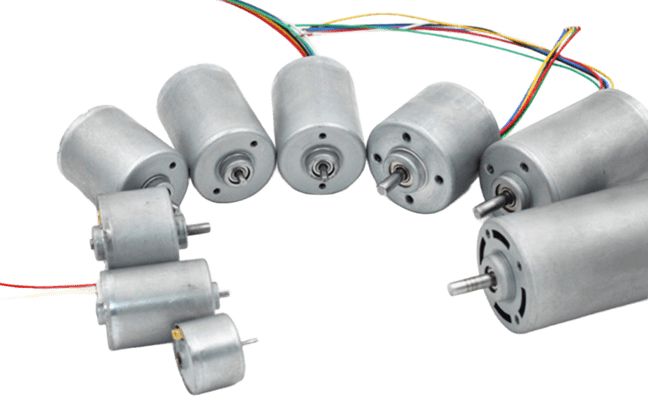

Benefits of the brushless motor
DC motors with no brushes mean no mechanical contact, no dust and no sparks.There are no motor brushes to wear out because the windings are electrically commutated.​Exquisitely efficient small form factor BLDC motor that has peak operating efficiency . High torque from a small form factor, with low power consumption and peak performance at lower RPM for quiet operation.
Speed and direction is controlled easily and accurately, offering you a full range of options with every motor.
The  Brushless Motors offers distinct advantages over the competition: exceptionally long service life (over 20000 operating hours), very low sound level (no brushed switching), good efficiency (optimized motor control), integrated sensors and excellent dynamics.
This motor features built-in controls,versatile and very simple to use.

Why do we use BLDC motors?

In manufacturing, brushless motors are primarily used for motion control, positioning or actuation systems. Brushless motors are ideally suited for manufacturing applications because of their high power density, good speed-torque characteristics, high efficiency, wide speed ranges and low maintenance.

CUSTOMIZED DESIGN WELCOME

Toosyn  can provide special shaft or flange version upon request. Gearbox design, Shaft Material, Flange shape and IP level can be made according to your requirement.


请替换示例图片

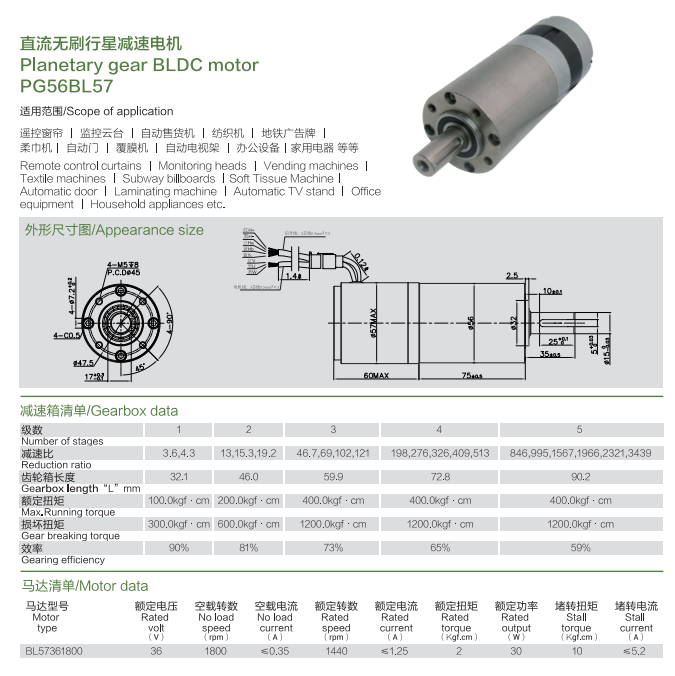

The following is the specification of the standard product

Product features

CertificationCE, ROHS, SGS, TUV, IATF16949
OEM & ODM ServiceAvailable
Gear typemetal  planetary  gearhead
Motor typeDC brushless motor
Shaft ConfigurationD-cut,Keyway,Round ,Hexagon, Splined or customized
Voltage:12VDC,24VDC,36VDC
Customization itemspeed , torque,  flange , shaft,  IP rating
Additional requirements Lead wire, connector, coupling ,encoder ,brake

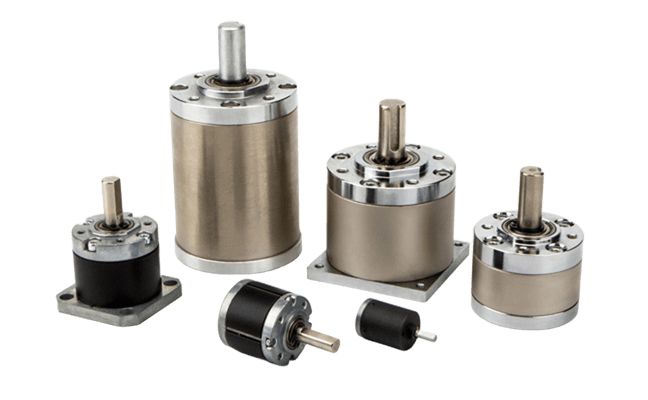

Planetary Gearbox features

Gearbox housing material1045 Steel
Geartrain material40Cr Steel , Powder Metallurgy
Shaft material40Cr Steel
Bearing at output shaftDual Ball  bearing
Lubricant in gearbox Graphene oil
Axial play
Radial play
Rotation directionCW/CCW reversible
Backlash at no-load
Operating temperature range -40 °C～+100°C
