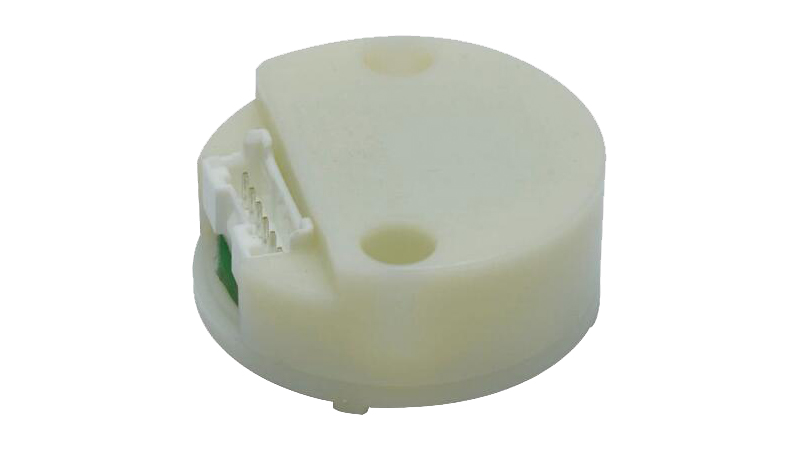

MEGR Magnetic Encoder -Toosyn

Parameter	Value
Model NO.	ME-GR
Encoder Type	Magnetic,2 Channels Hall Effect Encoder
Operating Temperature Range	-40 °C～+100°C
Operating Rrelative Hhumidity	20%～85%RH

Products

Hot Products

16mm Planetary DC Gear Motor (3~24V)

ME28 Magnet Encoder

22mm Planetary DC Gear Motor (3V~24V)

42mm Planetary DC Gear Motor with Encoder

28mm Brushless DC Gear Motor

36mm BLDC Gear Motor

Set A Consultation Today

Name can't be empty

Email error!

Send Your Message

*We respect your confidentiality and all information are protected.

Description

Reviews

Key Features

High Precision Output

Delivers accurate rotational feedback using advanced magnetic sensing for motion control and positioning systems.

Compact Design

Engineered with a compact housing and robust materials, ideal for space-limited and demanding industrial environments.

Wide Voltage Compatibility

Supports flexible voltage input, making MEGR Magnetic Encoder suitable for various automation and motor applications.

Noise-Resistant Signal Transmission

Ensures reliable performance with strong resistance to electrical noise in high-speed, high-interference settings.

Available Options

Magnetic Encoder Kit

Utilizes Hall-effect sensors and a 6-pole magnetic disc to provide 12 counts per revolution for precise position and speed feedback in micro metal gearmotors. Compatible with HPCB versions.

Optical Encoder Kit

Features sensor boards with 3-tooth (12 CPR) or 5-tooth (20 CPR) encoder wheels for accurate speed and position sensing in LP, MP, or HP micro metal gearmotors.

High-Resolution Magnetic Encoder

Advanced magnetic encoders, like AS5040, offer 256–1024 CPR for micromouse applications, providing superior position feedback for micro metal gearmotors in precision robotics.

Electromagnetic Brake Option

Integrated electromagnetic brakes for micro metal gearmotors ensure rapid stopping and holding torque, ideal for applications requiring precise motion control in harsh environments.

JST SH Connector Encoders

Magnetic encoders with top or side-entry JST SH-type connectors (12 CPR) enable easy integration with micro metal gearmotors, supporting 2.7–18V for robust performance.

Customizable Brake Systems

Tailored brake solutions for micro metal gearmotors, offering adjustable braking force for dynamic control of speed and position in demanding industrial applications.
