| Parameter | Value |
|---|---|
| Series | PG56ZY58 |
| Diameter | 56mm |
| Motor type | DC brushed motor |
| Gearbox type | Planetary |
| Nominal Voltage | 12VDC,24VDC |
| Rated power | 30-100Watt |

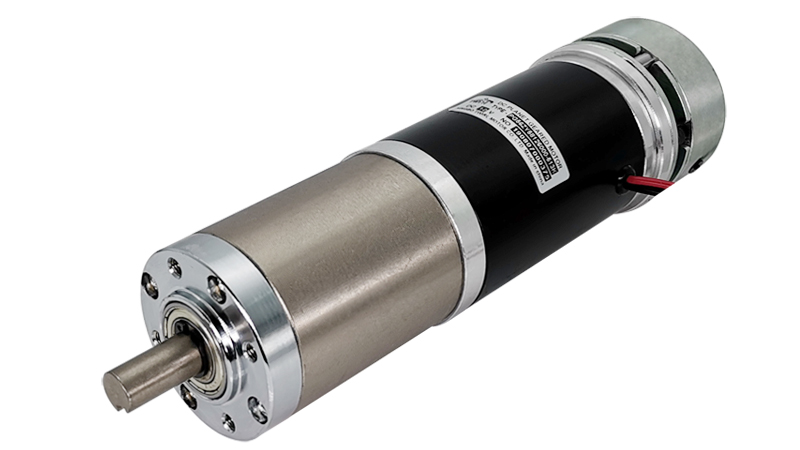

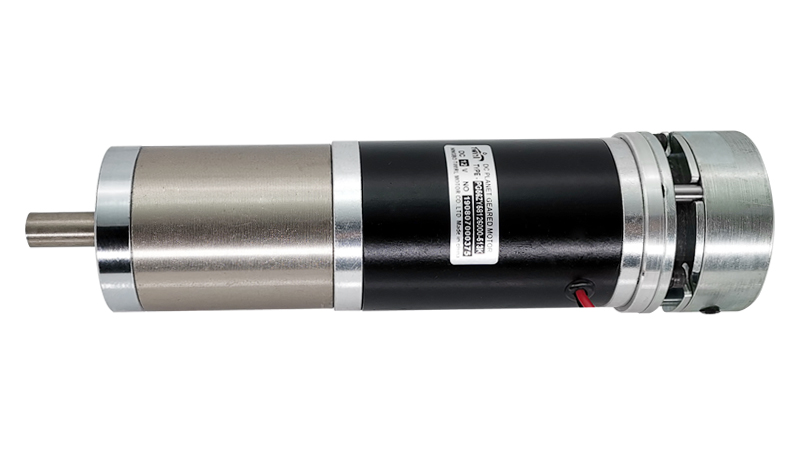

PG56ZY58 series Gearmotor consists of 56mm planetary gearbox and ZY58 series brushed motor. Large variety of ratios.Minimum backlash.High power density.High efficiency.
Mounting Configurations
Different mounting options, such as end bells and mounting plates, allow for flexible integration into various systems.
Output Shafts
Customizations include shaft material, diameter, and features like flats or through-holes for encoders.
Additional Accessories
Accessories like encoders, brakes,wiring harnesses, couplings, and custom sub-assemblies can be added for enhanced functionality and integration.
EMI/RFI Suppression
Adding components to reduce electromagnetic interference.
Seals and Lubrication
Specific seals or lubrication types can be chosen for the application's environment.
End Bells and Housings
Modifications can be made to the end bells and housings for specific mounting or environmental needs.

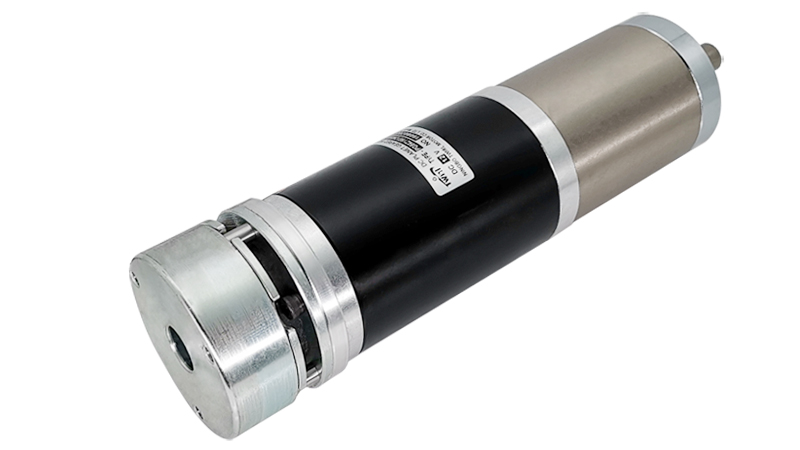

It is a power off type electromagnetic brake which is connected directly with the motor.
The motor will stop instantly and keep load when the supply power is off.
It is specially suitable for the safety brake in the condition of unconsciously power off.
Firstly connect the brake wire to the 12V/24V power, and then connect the motor wire to another 12V/24V power.
The time interval should above 300mS.
When the motor power is on,the brake release.When the motor power is off,the brake will operate.
